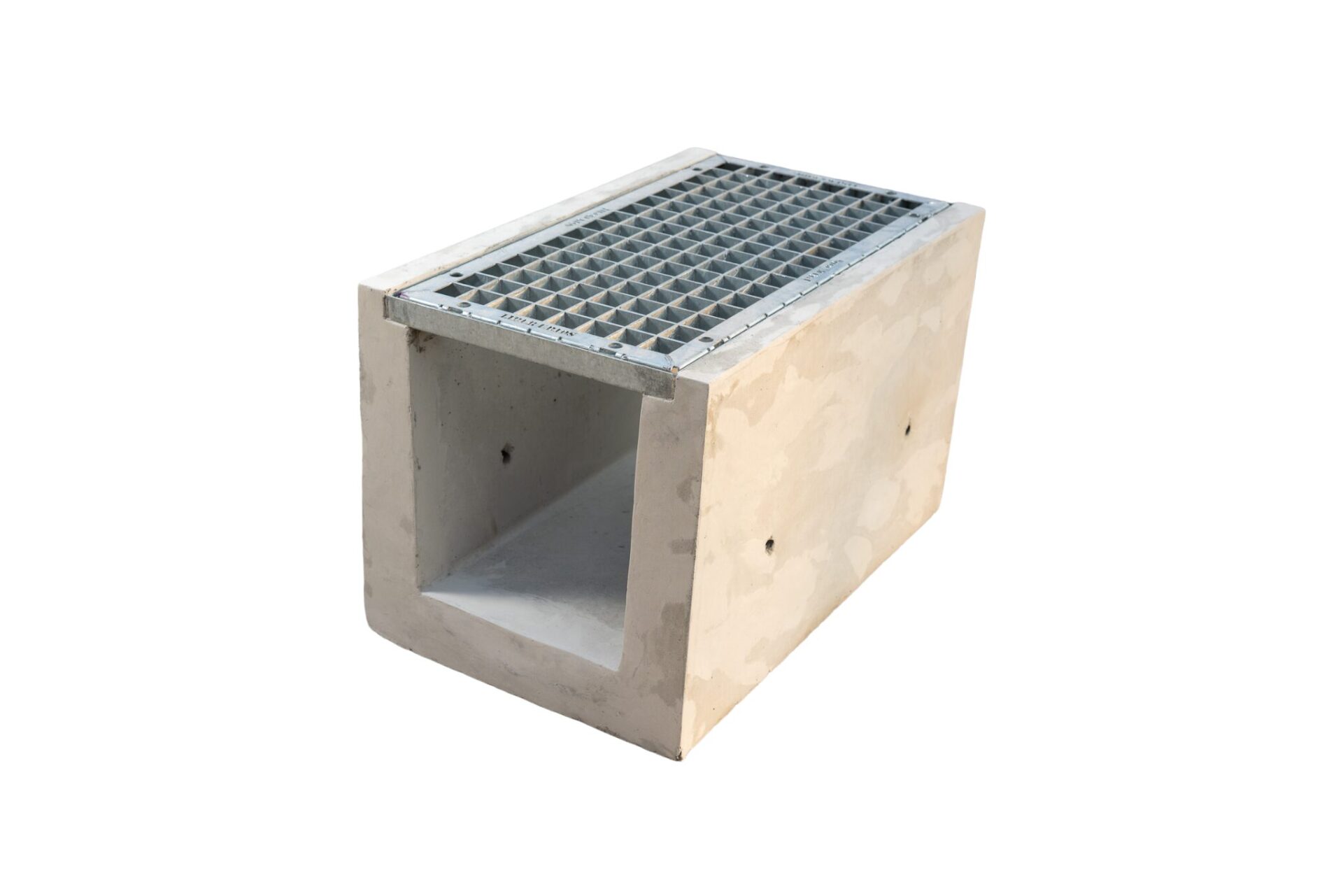

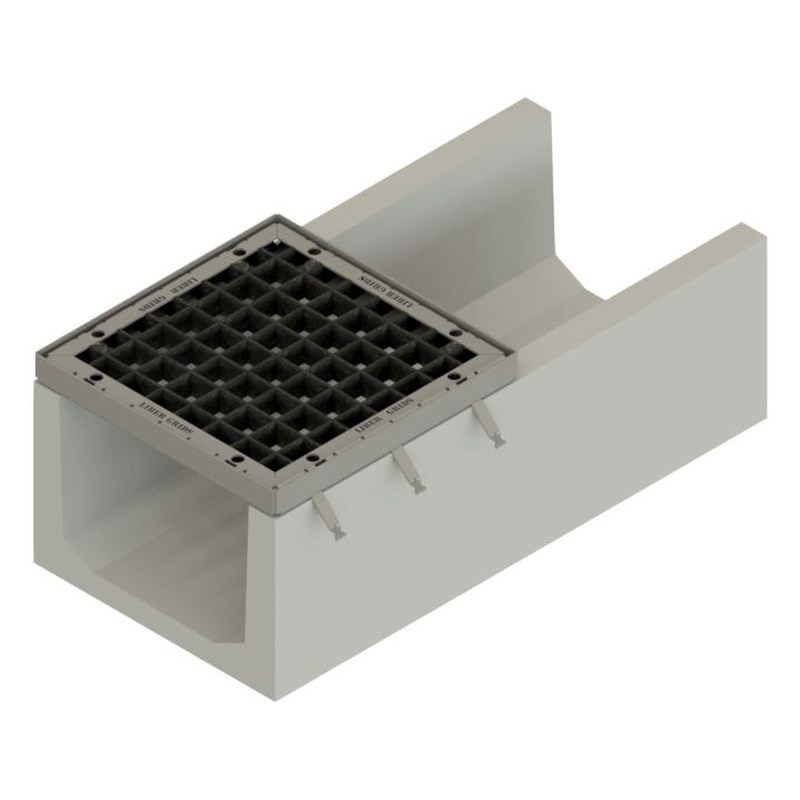

LD-S4B Grids

Galvanized
Mild Steel S355JR

Large format drainage grid for extended channel systems and access covers in pedestrian and light vehicle zones. Class B load rating (125kN) with high 69.3% permeability ensures efficient stormwater management. Recommended for parking areas, service roads, and commercial property drainage channels across South African urban developments.

SANS 50124 Load Class: B
Loadbearing Capacity: 125 kN
Unit Weight: 31.528 kg
Total Surface Area: 0.502 sqm
Permeable Surface Area: 0.348

External Dimensions

Length: 1000 mm
Width: 502 mm
Profile height: 43 mm

Manhole / Culvert Internal Dimensions

Length: 1000 mm
Width: 502 mm

Permeability Ratio

0
%
