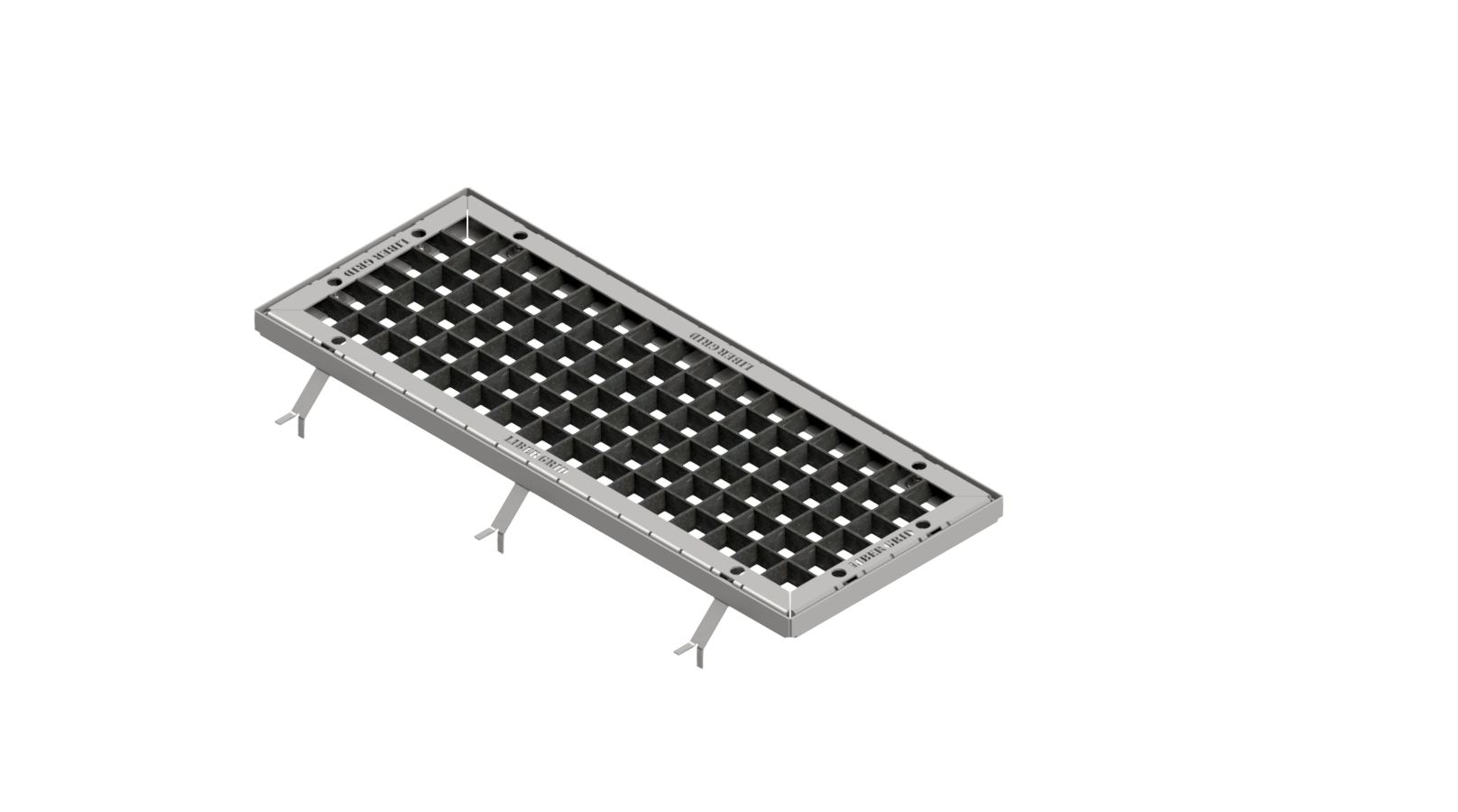

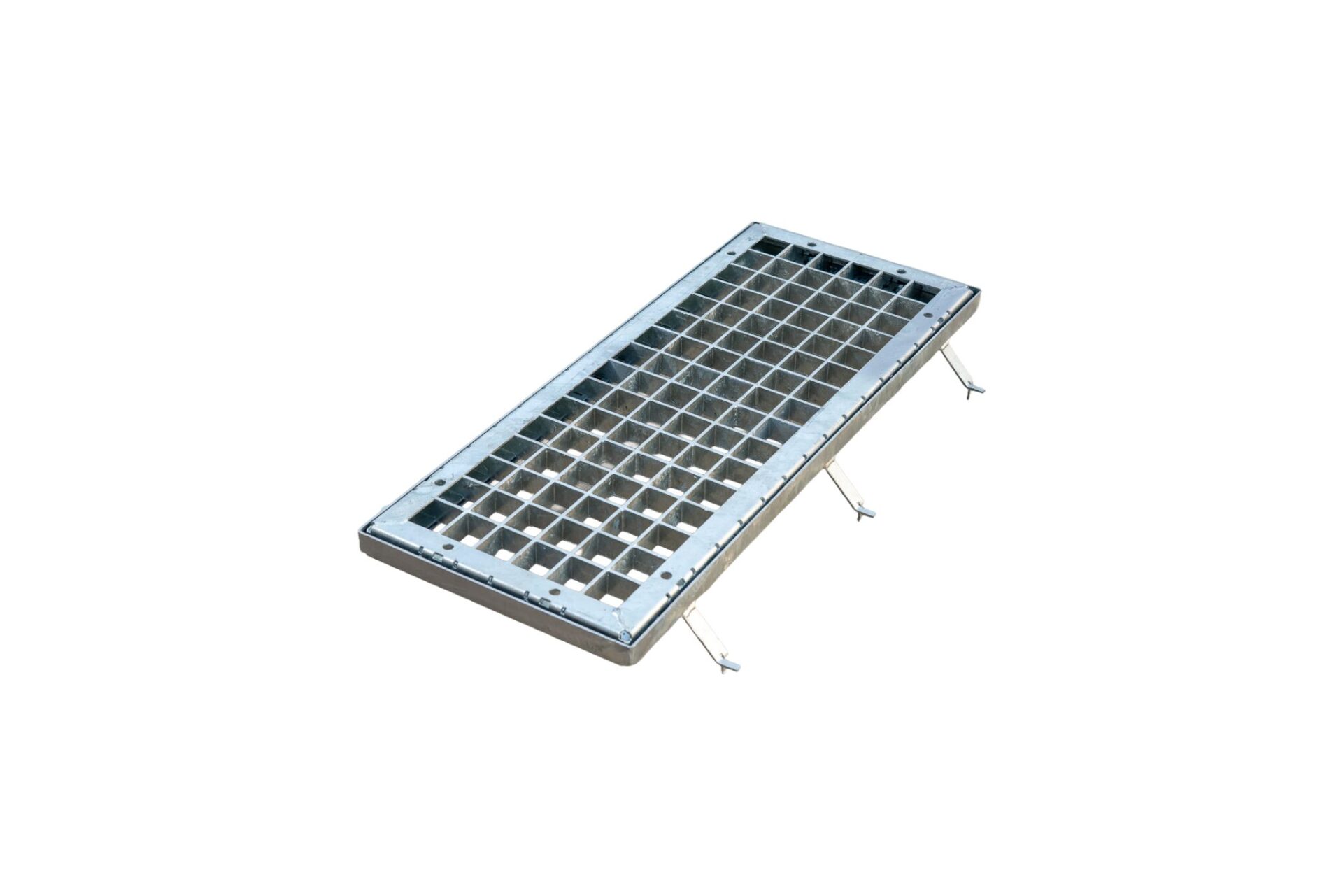

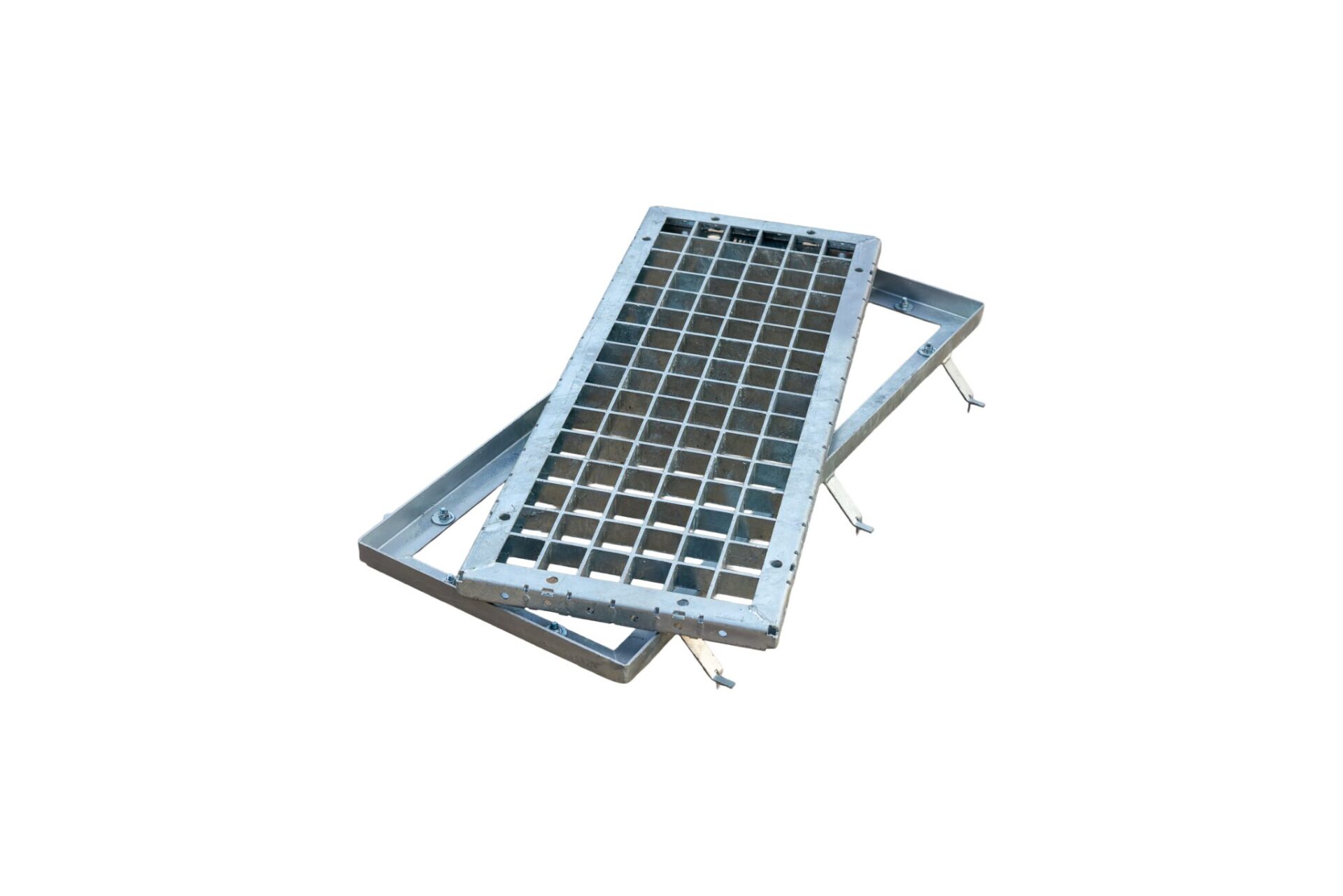

LD-S1 Grids

Galvanized
Mild Steel S355JR

Designed for channel drainage systems in pedestrian areas, shopping centres, and light commercial zones. This Class B rated grid (125kN) provides excellent water management with 67% permeability, making it ideal for walkways, patios, and residential driveways. Galvanized finish ensures long-term corrosion resistance in South African coastal and inland environments.

SANS 50124 Load Class: B
Loadbearing Capacity: 125 kN
Unit Weight: 23.608 kg
Total Surface Area: 0.4 sqm
Permeable Surface Area: 0.268

External Dimensions

Length: 1000 mm
Width: 400 mm
Profile height: 40 mm

Manhole / Culvert Internal Dimensions

Length: Channel Length mm
Width: 300 mm

Permeability Ratio

0
%
