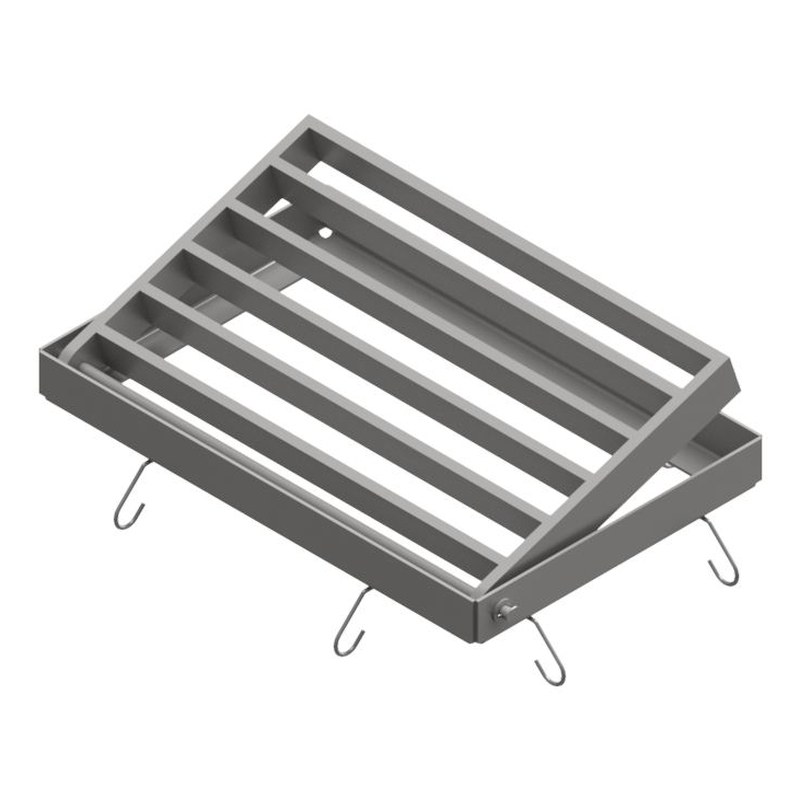

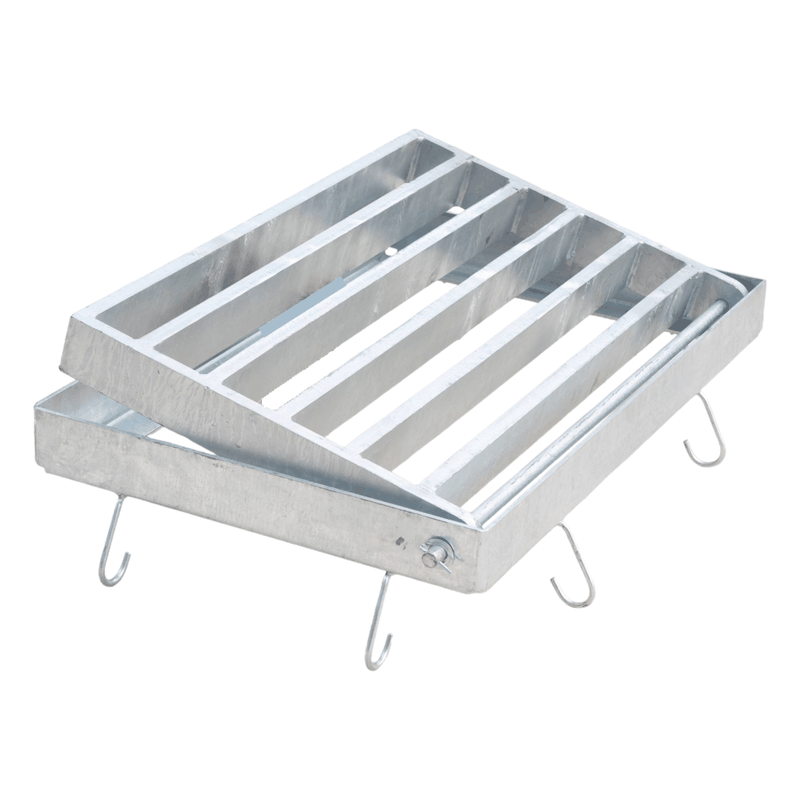

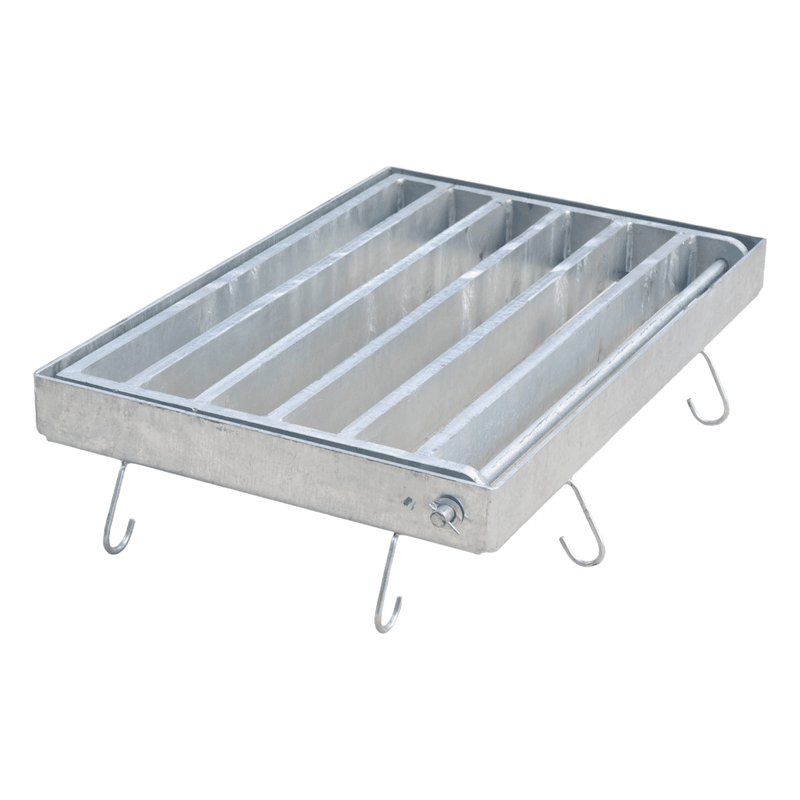

SR-A-Single Type B-GA Grids

Galvanized
Mild Steel S355JR

SANRAL-specification Type B single grid for compact national road applications. Fully compliant with South African National Roads Agency standards, featuring 96.1% permeability for optimal drainage. Designed for N-routes, provincial roads, and SANRAL-approved municipal road infrastructure projects.

SANS 50124 Load Class: SANRAL SPEC
Loadbearing Capacity: 40 kN
Unit Weight: 97.133 kg
Total Surface Area: 0.581 sqm
Permeable Surface Area: 0.559

External Dimensions

Length: 619 mm
Width: 939 mm
Profile height: 90 mm

Manhole / Culvert Internal Dimensions

Length: 809 mm
Width: 489 mm

Permeability Ratio

0
%
