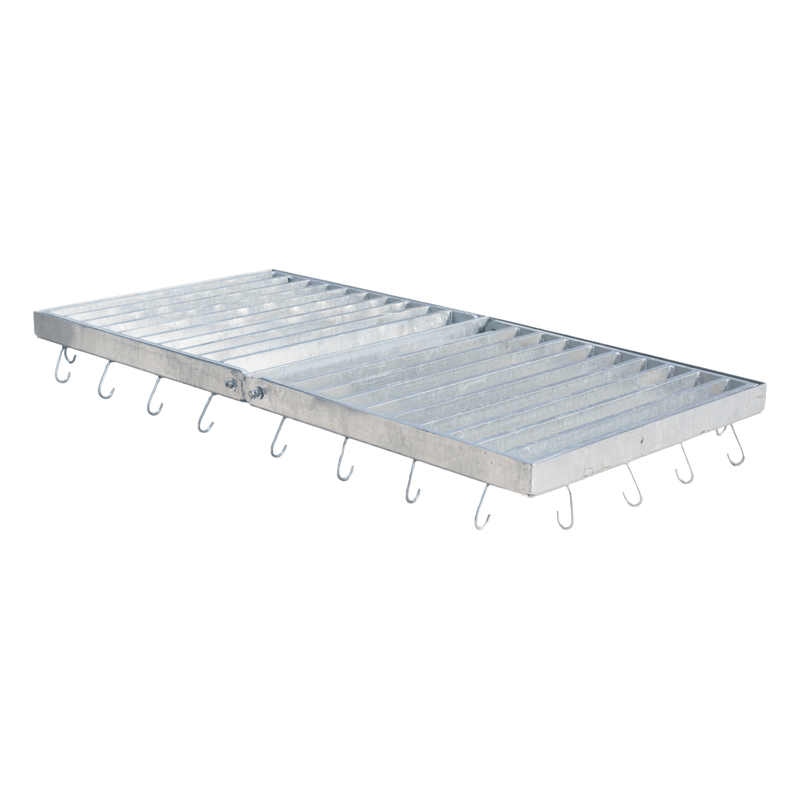

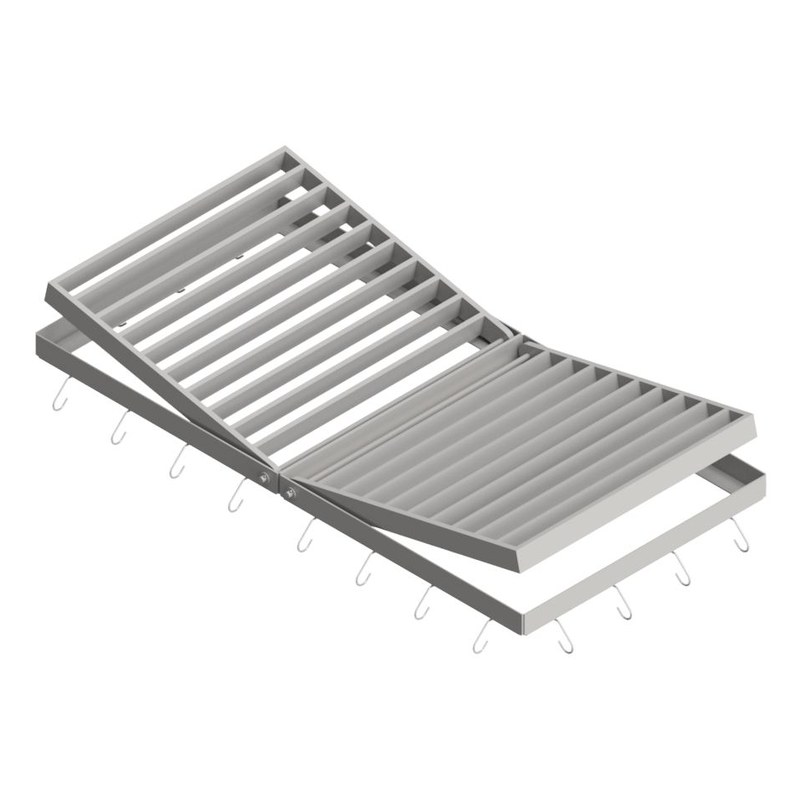

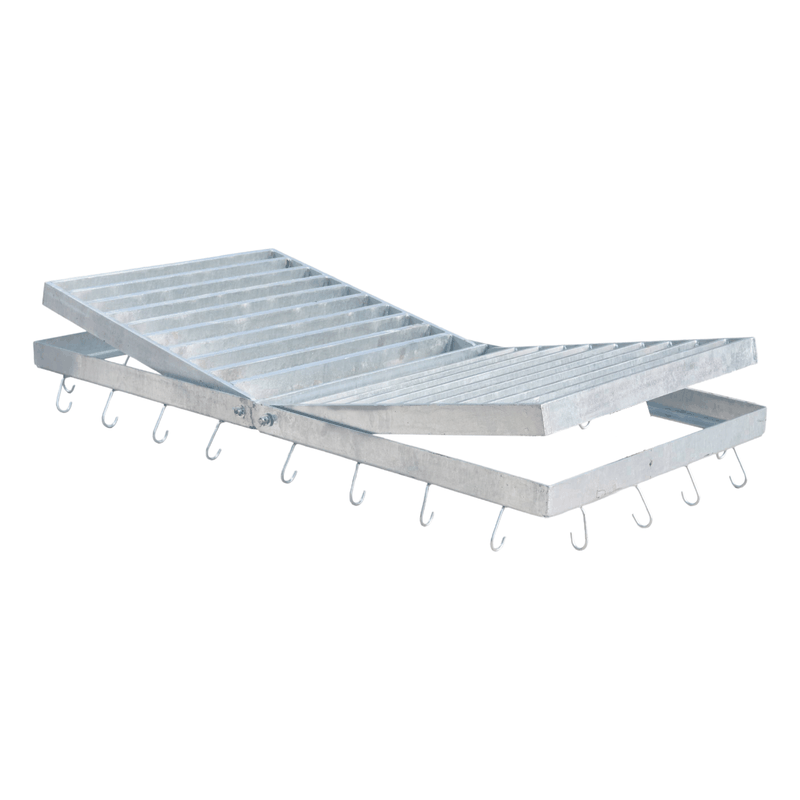

SR/A Double Type-A-GA Grids

Galvanized
Mild Steel S355JR

SANRAL-specification double-width grid for high-capacity national road drainage. Meeting all South African National Roads Agency standards with 96.8% permeability, this grid serves dual-carriageway highways, major interchange drainage, and large-scale culvert applications on SANRAL-managed road networks.

SANS 50124 Load Class: SANRAL SPEC
Loadbearing Capacity: 40 kN
Unit Weight: 335.813 kg
Total Surface Area: 2.184 sqm
Permeable Surface Area: 2.115

External Dimensions

Length: 2090 mm
Width: 1045 mm
Profile height: 90 mm

Manhole / Culvert Internal Dimensions

Length: 1960 mm
Width: 915 mm

Permeability Ratio

0
%
