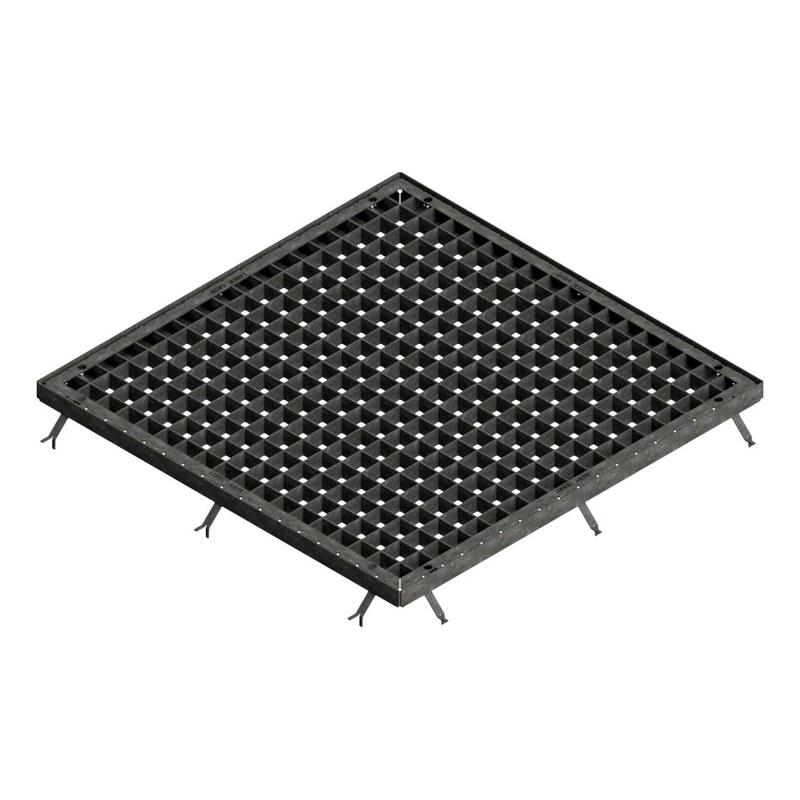

MD-S3 Grids

Galvanized
Mild Steel S355JR

Extra-large 1200mm x 1200mm pedestrian access cover with Class A rating (15kN). Highest permeability at 77.7% for maximum water ingress. Designed for major stormwater collection points in pedestrian-only zones including parks, botanical gardens, and public plazas throughout South African municipalities.

SANS 50124 Load Class: A
Loadbearing Capacity: 15 kN
Unit Weight: 123.129 kg
Total Surface Area: 1.742 sqm
Permeable Surface Area: 1.353

External Dimensions

Length: 1320 mm
Width: 1320 mm
Profile height: 60 mm

Manhole / Culvert Internal Dimensions

Length: 1200 mm
Width: 1200 mm

Permeability Ratio

0
%
