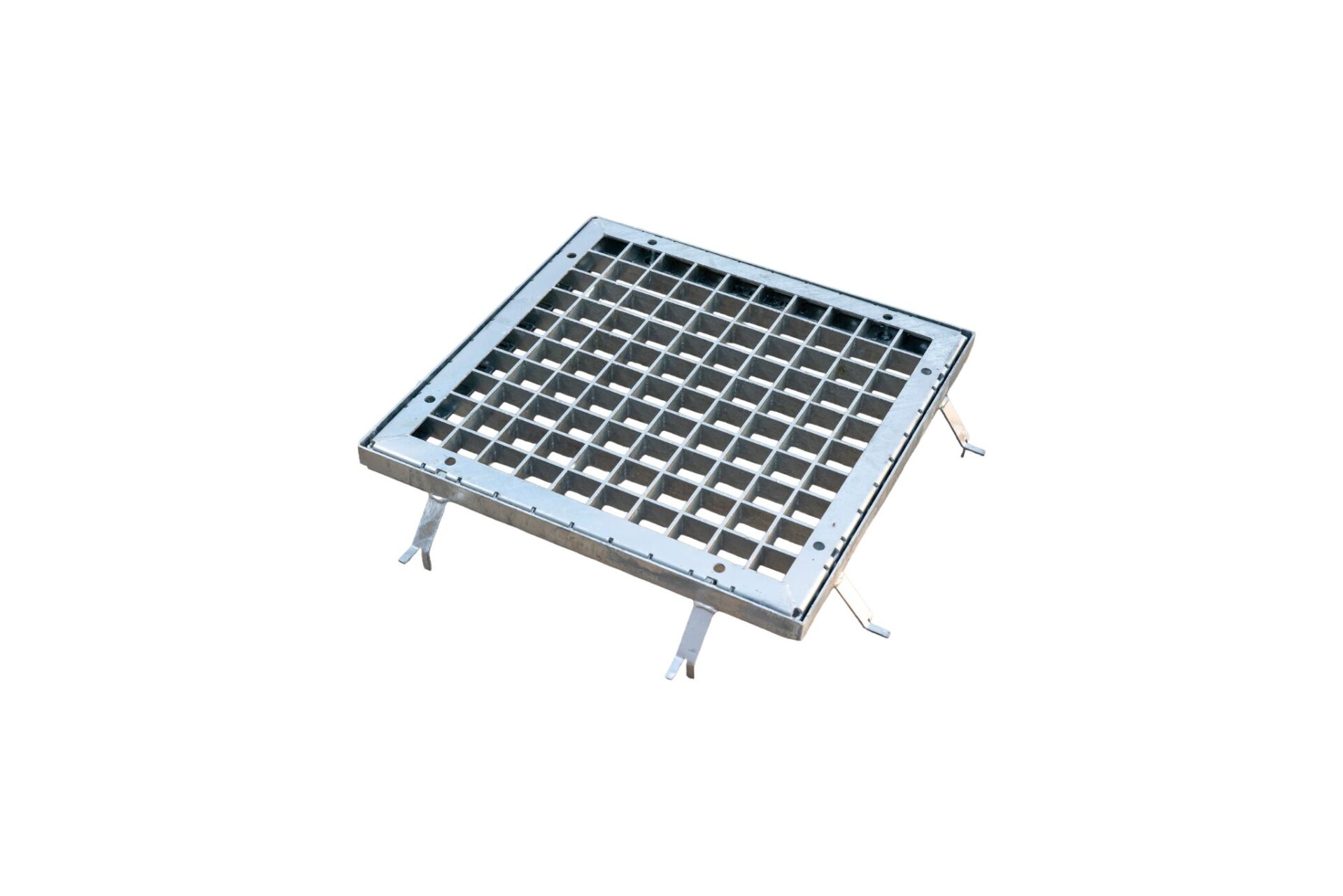

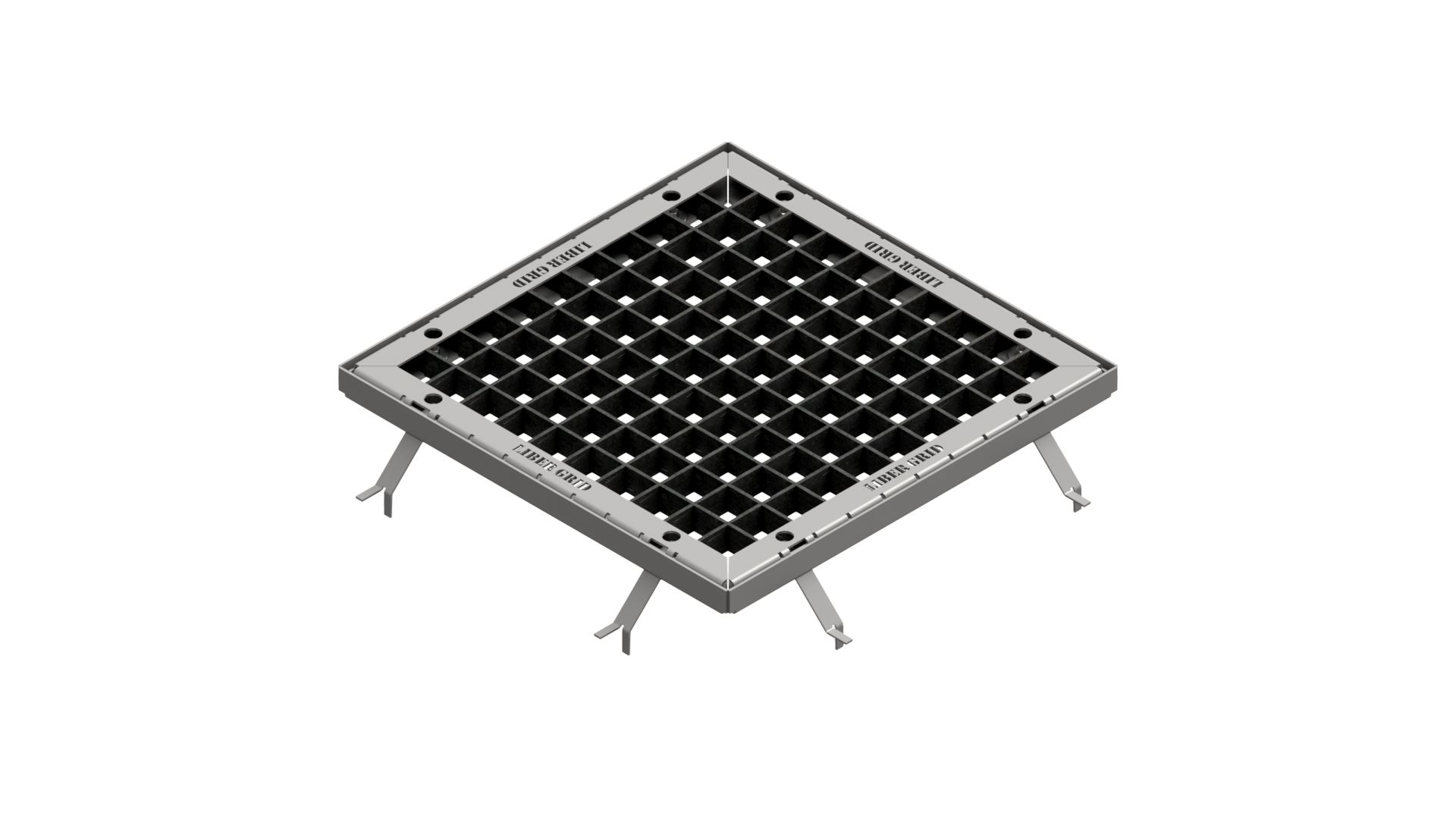

LD-S3 Grids

Galvanized
Mild Steel S355JR

Versatile 500mm x 500mm manhole cover for pedestrian zones and light vehicle areas. Class B rated (125kN) with 67.6% permeability ratio, ideal for stormwater drainage pits, service access points in commercial complexes, and municipal pedestrian walkways. Suitable for shopping mall entrances and residential complex common areas.

SANS 50124 Load Class: B
Loadbearing Capacity: 125 kN
Unit Weight: 21.842 kg
Total Surface Area: 0.36 sqm
Permeable Surface Area: 0.243

External Dimensions

Length: 600 mm
Width: 600 mm
Profile height: 40 mm

Manhole / Culvert Internal Dimensions

Length: 500 mm
Width: 500 mm

Permeability Ratio

0
%
