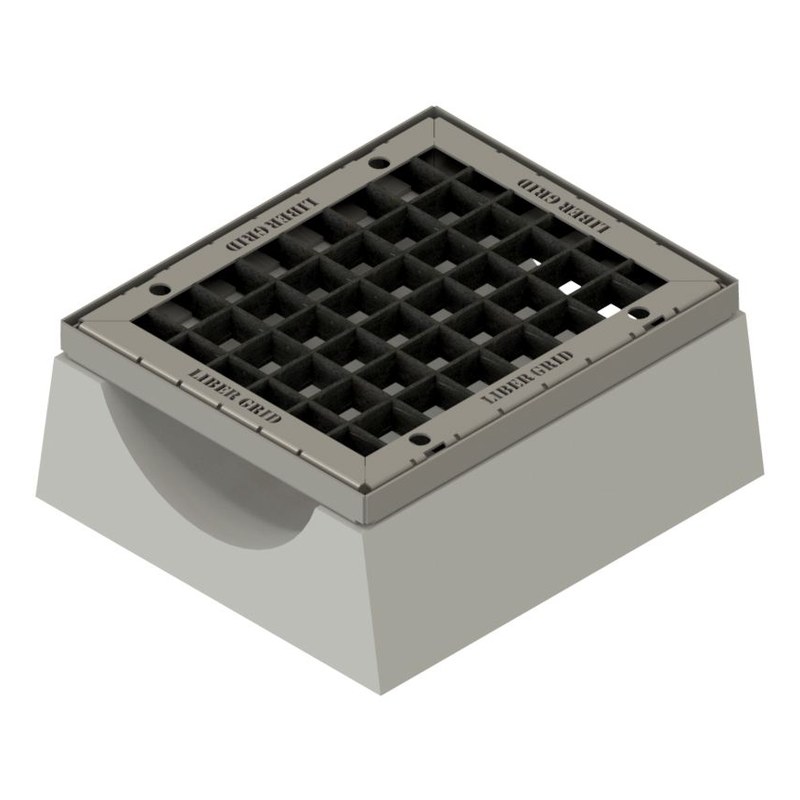

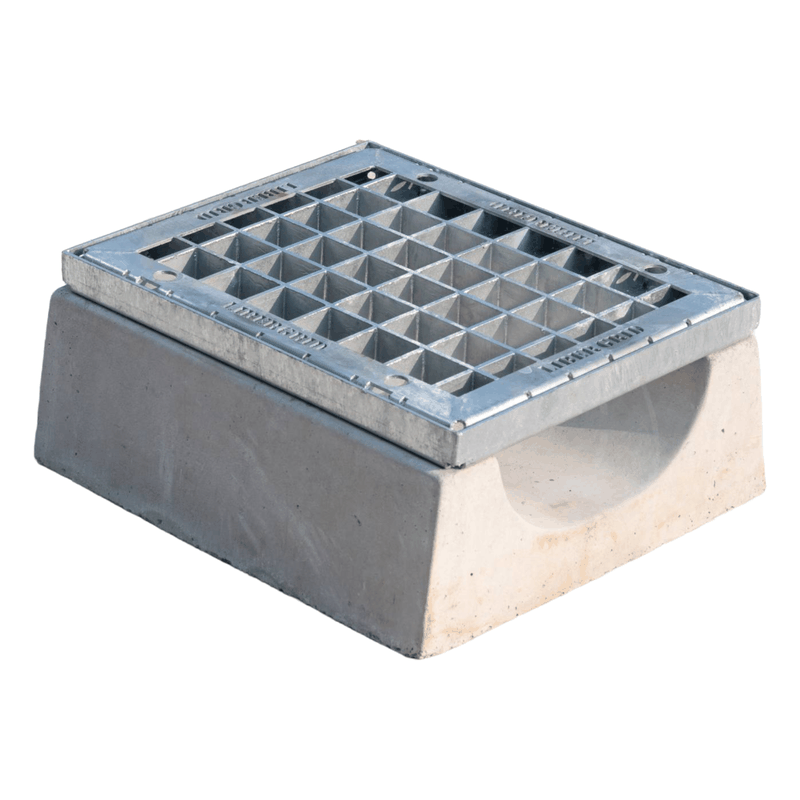

LD-D9 Grids

Galvanized
Mild Steel S355JR

Compact double-bar drainage grid for pedestrian walkways and light-duty commercial areas. Class B rated (125kN) with 59.4% permeability, suited for entrance ways, covered walkways, and service areas. Ideal for South African retail centres, office building perimeters, and residential estate pedestrian zones.

SANS 50124 Load Class: B
Loadbearing Capacity: 125 kN
Unit Weight: 34.38 kg
Total Surface Area: 0.196 sqm
Permeable Surface Area: 0.116

External Dimensions

Length: 490 mm
Width: 400 mm
Profile height: 40 mm

Manhole / Culvert Internal Dimensions

Length: Channel Length mm
Width: 300 mm

Permeability Ratio

0
%
